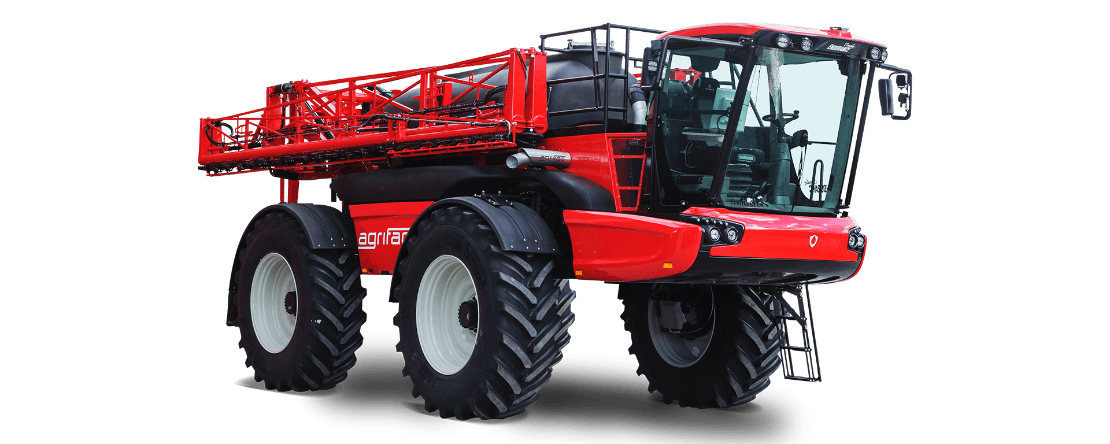

Agrifac Endurance

condor_endurance_Vkopie

Agrifac Endurance Features

Length: 1100 – 1300 cm
Width: 300 cm
Height: 397 cm*
Ground clearance: 139 cm*
Main tank: 8000 lt
Clean water tank: 700 lt
Boom: J-Boom (Trifold, type J2)
Boom widths: From 24 up to 55 m
Tires: Up to 230 cm diameter
Chassis: StabiloPlus tandem chassis with air suspension
Weight distribution: Maximum stability due to the equal weight distribution over all 4 wheels
Steering: 4-wheel steering. 2-wheel steering and crab steering
Adjustable track width: Stepless adjustable track width of 100 cm from the cabin
Track widths: Possible from 1910-4600 mm
Turning Radius: 450 cm (inside) / 675 cm (outside)
Drive & Propulsion: Hydrostatic stepless 4-wheel drive (continuously variable)
Drum brakes on all 4 wheels
Transport / road speed: Up to 60 Km/h, depending on legislation per country
Spraying speed group 1: 0 – 12 km/h
Spraying speed group 2: 0 – 25 km/h
Spraying speed group 3: 0 – 35 km/h
Controls: Joystick, foot pedal and cruise control
Motor: 6-Cylinder 8.9 lt Cummings engine, 298 kW (405 hp) / Tier 4, EU Stage V. Unregulated
Fuel tank: 700 lt
Hydraulic oil tank: 95 lt tank 65 (system 165 lt)
AdBlue tank: 80 lt

*Sizes and ground clearance can differ based on different boom and tire configurations.
